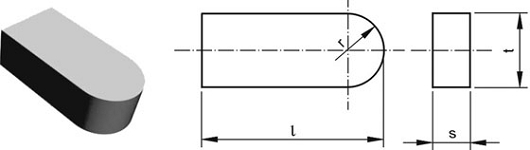

Weld Tips-Type F2
Type | Dimension(mm) | Approx Unit Weight(g) | ||||||
l | t | s | r | YG6 | YG8 | YT5 | YT14 | |
F216 | 16.0 | 8.0 | 5.0 | 4.0 | 9.3 | 9.2 | 8.0 | 7.1 |
F216A | 16.0 | 10.0 | 5.0 | 5.0 | 11.0 | 10.8 | 9.9 | 8.8 |
F216B | 16.0 | 12.0 | 6.0 | 6.0 | 15.7 | 15.5 | 13.6 | 12.0 |
F218 | 18.0 | 2.5 | 2.5 | 1.3 | 1.8 | 1.7 | 1.3 | 1.2 |
F220 | 20.0 | 3.0 | 3.0 | 1.5 | 2.6 | 2.5 | 2.3 | 2.1 |
F225 | 25.0 | 5.0 | 4.0 | 2.5 | 7.4 | 7.3 | 6.2 | 5.7 |
F230 | 30.0 | 6.0 | 5.0 | 3.0 | 13.5 | 13.3 | 10.8 | 10.0 |
F230A | 30.0 | 8.0 | 5.0 | 4.0 | 17.4 | 17.2 | 16.8 | 15.4 |
F230B | 30.0 | 10.0 | 5.0 | 5.0 | 22.0 | 21.8 | 24.4 | 22.0 |
F230C | 30.0 | 12.0 | 6.0 | 6.0 | 31.4 | 31.0 | 39.3 | 36.7 |
